NOK-IUH型活塞桿密封_NOK密封件
詢價致電：0769-22210391 傳真：0769-22217692 手機：13450082237

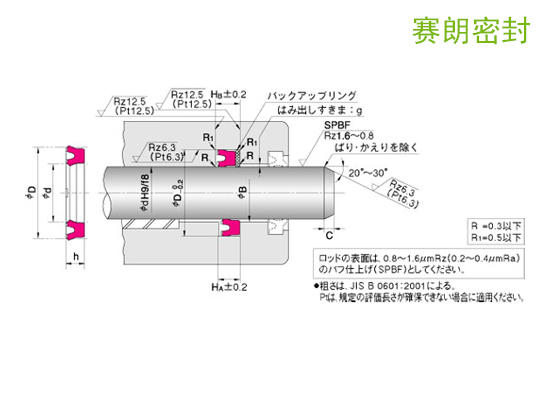

密封件公稱尺寸 | 腔體尺寸 | NOK零件號 | d | D | h | φd | φD | HA | HB | C | 標準(A505) | 耐寒(A567) | 14 | 22 | 5 | 14 | 22 | 5.7 | 7.7 | 2.5 | ●CU2962N1 |
| 16 | 24 | 16 | 24 | ●CU2548N0 |
| 18 | 26 | 18 | 26 | CU0180N2 |
| 20 | 28 | 20 | 28 | CU0212N3 | CU0212N5 | 22.4 | 30 | 22.4 | 30 | CU3488N0 |
| 25 | 33 | 25 | 33 | CU0276N3 | CU0276N5 | 28 | 35.5 | 28 | 35.5 | CU0320N0 |
| 30 | 40 | 6 | 30 | 40 | 7 | 10 | 3 | CU0357N3 | CU0357N5 | 35 | 45 | 35 | 45 | CU0424N3 | CU0424N5 | 35.5 | 35.5 | CU0451N2 |
| 40 | 50 | 40 | 50 | CU0497N4 | CU0497N6 | 45 | 55 | 45 | 55 | CU0567N4 | CU0567N6 | 56 | 7 | 56 | 8 | 11 | CU0572N1 |
| 50 | 60 | 6 | 50 | 60 | 7 | 10 | CU0619N3 | CU0619N5 | 55 | 65 | 55 | 65 | CU0694N3 | CU0694N5 | 56 | 66 | 56 | 66 | CU0722N2 |
| 60 | 70 | 60 | 70 | CU0746N3 | CU0746N6 | 63 | 73 | 63 | 73 | CU0786N2 |
| 65 | 75 | 65 | 75 | CU0809N2 | CU0809N4 | 67 | 77 | 67 | 77 | CU0828N0 |
| 70 | 85 | 9 | 70 | 85 | 10 | 13 | 4 | CU0857N2 | CU0857N3 | 71 | 80 | 6 | 71 | 80 | 7 | 10 | CU0879N0 |
| 75 | 85 | 75 | 85 | CU0901N4 | CU0901N6 | 80 | 90 | 80 | 90 | CU0939N3 | CU0939N4 | 85 | 100 | 9 | 85 | 100 | 10 | 13 | CU0984N1 |
| 90 | 105 | 90 | 105 | CU1024N3 | CU1024N5 | 95 | 110 | 95 | 110 | CU1051N2 | CU1051N5 | 100 | 115 | 100 | 115 | CU1082N3 | CU1082N5 | 105 | 120 | 105 | 120 | CU1125N1 | CU1125N2 | 110 | 125 | 110 | 125 | CU1157N3 | CU1157N5 | 112 | 125 | 8.5 | 112 | 125 | 9.5 | 12.5 | CU1178N0 |
| 115 | 130 | 9 | 115 | 130 | 10 | 13 | CU1195N0 | CU1195N1 | 120 | 135 | 120 | 135 | CU1220N3 | CU1220N2 | 125 | 140 | 125 | 140 | CU1252N3 | CU1252N5 | 130 | 145 | 130 | 145 | CU1280N0 | CU1280N1 | 135 | 150 | 135 | 150 | CU2264N2 | CU2264N0 | 140 | 155 | 140 | 155 | CU1323N2 | CU1323N3 | 145 | 160 | 145 | 160 | CU1343N0 |
| 150 | 165 | 150 | 165 | CU1359N2 | CU1359N4 | 160 | 175 | 160 | 175 | CU1406N1 |
| 170 | 190 | 12 | 170 | 190 | 13 | 17 | 5.5 | CU3494N1 | CU3494N0 | 180 | 200 | 180 | 200 | CU1483N2 | CU1483N3
|
