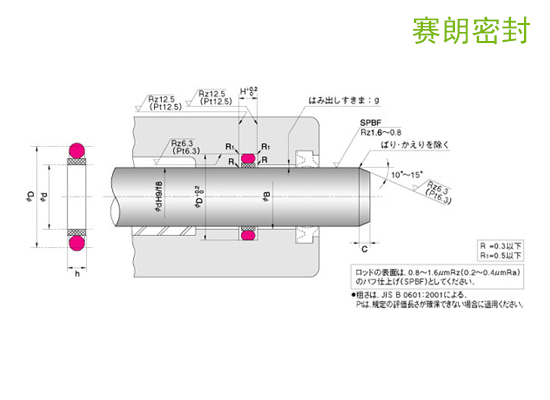

NOK-SPNO型活塞桿密封_NOK密封件
詢價致電：0769-22210391 傳真：0769-22217692 手機：13450082237
| 名義號 | 密封件公稱尺寸 | 腔體尺寸 | NOK 零件號 | |||||
| d | D | h | φd | φD | H | C | ||
| SPNO 12 | 12 | 18 | 3 | 12 | 18 | 3.2 | 2 | ●GS2800V0 |
| 14 | 14 | 20 | 14 | 20 | ●GS2801V0 | |||
| 16 | 16 | 22 | 16 | 22 | ●GS2802V0 | |||
| 18 | 18 | 24 | 18 | 24 | ●GS2803V0 | |||
| 20 | 20 | 26 | 20 | 26 | ●GS2804V0 | |||
| 22 | 22 | 31 | 3.8 | 22 | 31 | 4 | 3.5 | ●GS2805V0 |
| 25 | 25 | 34 | 25 | 34 | ●GS2806V0 | |||
| 28 | 28 | 37 | 28 | 37 | ●GS2807V0 | |||
| 30 | 30 | 39 | 30 | 39 | ●GS2808V0 | |||
| 32 | 32 | 41 | 32 | 41 | ●GS2809V0 | |||
| 36 | 36 | 45 | 36 | 45 | ●GS2810V0 | |||
| 40 | 40 | 49 | 40 | 49 | ●GS2811V0 | |||
| 45 | 45 | 54 | 45 | 54 | ●GS2812V0 | |||
| 50 | 50 | 65 | 6.3 | 50 | 65 | 6.5 | 4 | ●GS2813V0 |
| 56 | 56 | 71 | 56 | 71 | GS2814V0 | |||
| 60 | 60 | 75 | 60 | 75 | GS2815V0 | |||
| 63 | 63 | 78 | 63 | 78 | GS2816V0 | |||
| 70 | 70 | 85 | 70 | 85 | 5 | GS2817V0 | ||
| 75 | 75 | 90 | 75 | 90 | GS2818V0 | |||
| 80 | 80 | 95 | 80 | 95 | GS2819V0 | |||
| 85 | 85 | 100 | 85 | 100 | GS2820V0 | |||
| 90 | 90 | 105 | 90 | 105 | GS2821V0 | |||
| 95 | 95 | 110 | 95 | 110 | GS2822V0 | |||
| 100 | 100 | 115 | 100 | 115 | GS2823V0 | |||
| 105 | 105 | 120 | 105 | 120 | GS2824V0 | |||
| 110 | 110 | 125 | 110 | 125 | GS2825V0 | |||
| 115 | 115 | 130 | 115 | 130 | 6.5 | GS2826V0 | ||
| 120 | 120 | 135 | 120 | 135 | GS2827V0 | |||
| 125 | 125 | 140 | 125 | 140 | GS2828V0 | |||
| 130 | 130 | 145 | 130 | 145 | GS2829V0 | |||
| 135 | 135 | 150 | 135 | 150 | GS2830V0 | |||
| 140 | 140 | 155 | 140 | 155 | GS2831V0 | |||
| 145 | 145 | 160 | 145 | 160 | GS2832V0 | |||
| 150 | 150 | 170 | 9.8 | 150 | 170 | 10 | GS2833V0 | |
| 160 | 160 | 180 | 160 | 180 | GS2834V0 | |||
| 170 | 170 | 190 | 170 | 190 | GS2835V0 | |||
| 180 | 180 | 200 | 180 | 200 | GS2836V0 | |||
| 190 | 190 | 210 | 190 | 210 | GS2837V0 | |||
| 200 | 200 | 220 | 200 | 220 | GS2838V0 | |||
| 210 | 210 | 230 | 210 | 230 | GS2839V0 | |||
| 220 | 220 | 240 | 220 | 240 | GS2840V0 | |||
| 224 | 224 | 244 | 224 | 244 | GS2841V0 | |||
| 230 | 230 | 250 | 230 | 250 | GS2842V0 | |||
| 240 | 240 | 260 | 240 | 260 | GS2843V0 | |||
| 250 | 250 | 270 | 250 | 270 | GS2844V0 | |||
| 260 | 260 | 280 | 260 | 280 | 7.5 | GS2845V0 | ||
| 270 | 270 | 290 | 270 | 290 | GS2846V0 | |||
| 280 | 280 | 300 | 280 | 300 | GS2847V0 | |||
| 290 | 290 | 310 | 290 | 310 | GS2848V0 | |||
| 300 | 300 | 320 | 300 | 320 | GS2849V0 | |||
| 310 | 310 | 330 | 310 | 330 | GS2850V0 | |||
| 320 | 320 | 340 | 320 | 340 | GS2851V0 | |||
| 330 | 330 | 350 | 330 | 350 | GS2852V0 | |||
| 340 | 340 | 360 | 340 | 360 | GS2853V0 | |||
| 350 | 350 | 370 | 350 | 370 | GS2854V0 | |||
| 360 | 360 | 380 | 360 | 380 | GS2855V0 | |||
| 370 | 370 | 390 | 370 | 390 | GS2856V0 | |||
| 380 | 380 | 400 | 380 | 400 | GS2857V0 | |||
