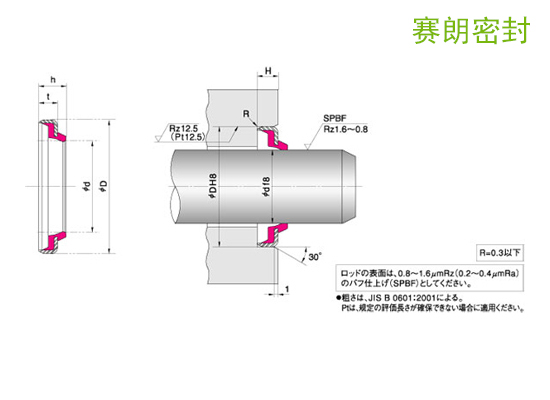

NOK-DKH型防塵密封件_鐵殼防塵圈
詢價致電：0769-22210391 傳真：0769-22217692 手機：13450082237
| 密封件公稱尺寸 | 腔體尺寸 | NOK 零件號 | |||||
| d | D | t | h | φd | φD | H | |
| 10 | 20 | 5 | 7 | 10 | 20 | 5+0.5+0.3 | AR0258E5 |
| 15 | 25 | 15 | 25 | AR0586E5 | |||
| 20 | 32 | 6 | 9 | 20 | 32 | 6+0.5+0.3 | AR0995F5 |
| 22.4 | 34.4 | 22.4 | 34.4 | AR1203G5※ | |||
| 25 | 37 | 25 | 37 | AR1301F5 | |||
| 28 | 40 | 28 | 40 | AR1536G5 | |||
| 30 | 42 | 30 | 42 | AR1664G5 | |||
| 35 | 47 | 7 | 10 | 35 | 47 | 7+0.5+0.3 | AR2041F5 |
| 35.5 | 47.5 | 35.5 | 47.5 | AR2149J5 | |||
| 40 | 52 | 40 | 52 | AR2342F5 | |||
| 45 | 57 | 45 | 57 | AR2633I5 | |||
| 50 | 62 | 50 | 62 | AR2831H5 | |||
| 55 | 69 | 8 | 11 | 55 | 69 | 8+0.6+0.4 | AR3033G5 |
| 60 | 74 | 60 | 74 | AR3187J5 | |||
| 65 | 79 | 65 | 79 | AR3381G5 | |||
| 80 | 94 | 80 | 94 | AR3720H5 | |||
| 85 | 99 | 85 | 99 | AR3828G5 | |||
| 90 | 104 | 90 | 104 | AR3913F5 | |||
| 95 | 109 | 95 | 109 | AR3976H5 | |||
| 100 | 114 | 100 | 114 | AR4046E5 | |||
| 105 | 121 | 9 | 12 | 105 | 121 | 9+0.6+0.4 | AR4142E5 |
| 120 | 136 | 120 | 136 | AR4326H5 | |||
| 130 | 146 | 130 | 146 | AR4438E5 | |||
| 155 | 175 | 10 | 14 | 155 | 175 | 10+0.6+0.4 | AR4663F5 |
| 210 | 235 | 12 | 17 | 210 | 235 | 12+0.7+0.5 | AR5129E5 |
| 230 | 255 | 230 | 255 | AR5277E5 | |||
| 240 | 265 | 240 | 265 | AR5336E5 | |||
| 265 | 290 | 265 | 290 | AR5480E5 | |||
| 300 | 330 | 16 | 22 | 300 | 330 | 16+0.7+0.5 | AR5622B5 |
| 310 | 340 | 310 | 340 | AR5668B5 | |||
| 315 | 345 | 315 | 345 | AR5685B5 | |||
| 330 | 360 | 330 | 360 | AR5741B5 | |||
| 335 | 365 | 335 | 365 | AR5761B5 | |||
| 440 | 480 | 18 | 24 | 440 | 480 | 18+0.7+0.5 | AR6021B5 |
| 460 | 490 | 20 | 25 | 460 | 490 | 20+0.8+0.6 | AR6073B5 |
| 470 | 510 | 470 | 510 | AR6094B5 | |||
| 500 | 530 | 16 | 22 | 500 | 530 | 16+0.7+0.5 | AR6140B5 |
