TPM組合油封

所屬分類：孔用密封（活塞密封）
點擊次數：
發布日期：2018-07-06 00:00:00
在線詢價

詳細介紹

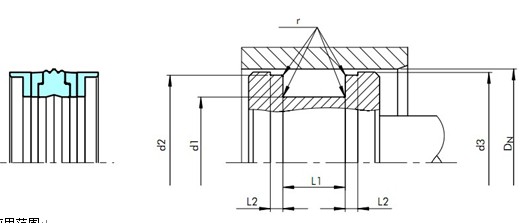

1．TPM組合油封標準材料

密封體：丁腈橡膠NBR或氟橡膠FKM

擋圈：聚酯彈性體

耐磨環：聚甲醛POM或尼龍PA


2．應用范圍

DDAS組合密封經常在作往復運動的液壓缸和活塞中用作密封元件，如：型推土機、起重機、叉車、液壓閘門及農業機械等。安裝在包括ISO6547標準溝槽的閉合溝槽中。設計選用時可參考Trelleborg公司DAS系列、Parker公司ZW系列、AS公司KGD系列標準。

3．特性及優點

1．良好的防泄漏性能；

2．彈性密封圈不會扭曲和翻轉；

3．活塞總長度較短；

4．活塞的生產成本低；

5．密封圈和耐磨環價廉；

6．開切口的擋圈和導向環安裝方便；

7．對間隙的抗擠出能力極強；

8．可安裝在封閉式溝槽中，能降低加工成本。

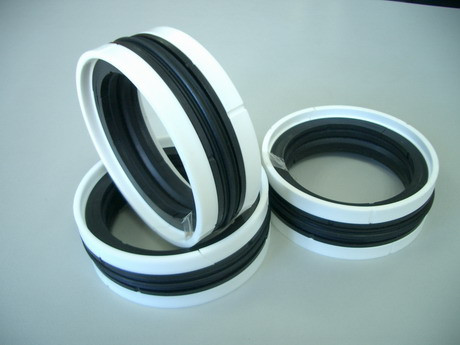

322 (2).jpg

編號	DdL	H	規格
TPM 098059	251512.5	20.5	TPM 251512.5
TPM 098059	251516.4	29.1	TPM 251516.4
TPM 098066	251710	18	TPM 251710
TPM 118066	301715.4	28.1	TPM 301715.4
TPM 125086	322212.5	20.5	TPM 322212.5
TPM 125086	322216.4	29.1	TPM 322216.4
TPM 125094	322410	18	TPM 322410
TPM 137098	352516.4	29.1	TPM 352516.4
TPM 157118	403016.4	29.1	TPM 403016.4
TPM 157118	403012.5	20.5	TPM 403012.5
TPM 157118	403012.5	20.5	TPM 403012.5
TPM 157125	403210	18	TPM 403210
TPM 157094	402418.4	31.1	TPM 402418.4
TPM 177114	452918.4	31.1	TPM 452918.4
TPM 177137	453516.4	29.1	TPM 453516.4
TPM 196133	503418.4	31.1	TPM 503418.4
TPM 196137	503520	30	TPM 503520
TPM 196157	504012.5	20.5	TPM 504012.5
TPM 216153	553918.4	31.1	TPM 553918.4
TPM 216177	554512.5	20.5	TPM 554512.5
TPM 236173	604418.4	31.1	TPM 604418.4
TPM 236173/1	604419.4	32.1	TPM 604419.4
TPM 248185	634718.4	31.1	TPM 634718.4
TPM 248185/1	634719.4	32.1	TPM 634719.4
TPM 248188	634820	30	TPM 634820
TPM 248208	635312.5	20.5	TPM 635312.5
TPM 255196	655018.4	31.1	TPM 655018.4
TPM 275196	705022.4	35.1	TPM 705022.4
TPM 275216	705520	30	TPM 705520
TPM 295216	755522.4	35.1	TPM 755522.4
TPM 314236	806022.4	35.1	TPM 806022.4
TPM 314236	806025	37.7	TPM 806025
TPM 314255	806520	30	TPM 806520
TPM 334255	856522.4	35.1	TPM 856522.4
TPM 334295	857520	28	TPM 857520
TPM 228255	866522.4	35.1	TPM 866522.4
TPM 354275	907022.4	35.1	TPM 907022.4
TPM 354275/1	907021	33.7	TPM 907021
TPM 354295	907520	30	TPM 907520
TPM 374295	957522.4	35.1	TPM 957522.4
TPM 393295	1007522.4	35.1	TPM 1007522.4
TPM 393314	1008025	37.7	TPM 1008025
TPM 393334	1008520	30	TPM 1008520
TPM 393338	1008620	30	TPM 1008620
TPM 413314	1058022.4	35.1	TPM 1058022.4
TPM 417314	1068022.4	35.1	TPM 1068022.4
TPM 433334	1108522.4	35.1	TPM 1108522.4
TPM 433334/1	1108525.4	38.1	TPM 1108525.4
TPM 433354	1109025.3	38.1	TPM 1109025.3
TPM 433374	1109520	30	TPM 1109520
TPM 452354	1159022.4	35.1	TPM 1159022.4
TPM 472374	1209522.4	35.1	TPM 1209522.4
TPM 480374	1229522.4	35.1	TPM 1229522.4
TPM 492393	12510025.4	38.1	TPM 12510025.4
TPM 492393	12510032	52	TPM 12510032
TPM 492413	12510525.4	38.1	TPM 12510525.4
TPM 511413	13010525.4	44.46	TPM 13010525.4
TPM 492413	12510525	37.7	TPM 12510525
TPM 511413	13010525.3	38	TPM 13010525.3
TPM 531433	13511025.4	44.44	TPM 13511025.4
TPM 551452	14011525.4	44.44	TPM 14011525.4
TPM 551452/1	14011525.4	38.1	TPM 14011525.4
TPM 551472	14012025	37.7	TPM 14012025
TPM 570472	14512025.4	44.44	TPM 14512025.4
TPM 578480	14712225.4	44.44	TPM 14712225.4
TPM 582484	14812325.4	44.44	TPM 14812325.4
TPM 590492	15012525.4	44.44	TPM 15012525.4
TPM 590511	15013025.4	38.1	TPM 15013025.4
TPM 610511	15513025.4	44.44	TPM 15513025.4
TPM 629531	16013525.4	44.44	TPM 16013525.4
TPM 629511/2	16013032	52	TPM 16013032
TPM 629551	16014025	37.7	TPM 16014025
TPM 629511	16013025.4	44.44	TPM 16013025.4
TPM 629511/1	16013025.4	38.1	TPM 16013025.4
TPM 649551	16514025.4	44.44	TPM 16514025.4
TPM 669551	17014025.4	50.8	TPM 17014025.4
TPM 669570	17014525.4	50.8	TPM 17014525.4
TPM 688590	17515025.4	50.8	TPM 17515025.4
TPM 708610	18015525.4	50.8	TPM 18015525.4
TPM 708590	18015035.4	48.1	TPM 18015035.4
TPM 708590	18015036	61	TPM 18015036
TPM 728629	18516025.4	50.8	TPM 18516025.4
TPM 748649	19016525.4	50.8	TPM 19016525.4
TPM 787699	19517025.4	50.8	TPM 19517025.4
TPM 787669	20017035.4	48.1	TPM 20017035.4
TPM 787669/1	20017036	61	TPM 20017036
TPM 787688	20017525.4	50.8	TPM 20017525.4
TPM 826728	21018525.4	50.8	TPM 21018525.4
TPM 866748	22019035.4	48.1	TPM 22019035.4
TPM 866767	22019525.4	50.8	TPM 22019525.4
TPM 886787	22520025.4	50.8	TPM 22520025.4
TPM 905807	23020525.4	50.8	TPM 23020525.4
TPM 944846	24021525.4	50.8	TPM 24021525.4
TPM 984886	25022525.4	50.8	TPM 25022525.4
TPM 984866	25022035.4	48.1	TPM 25022035.4
TPM 984899/1	25022036	61	TPM 25022036
TPM 1000882	25422435.4	60.8	TPM 25422435.4
TPM 1024925	26023535.1	60.5	TPM 26023535.1
TPM 1102984	28025035.4	54.44	TPM 28025035.4
TPM 12591141	32029035.4	54.44	TPM 32029035.4
TPM 12591141/1	32029036	61	TPM 32029036

TPM/P 雙向活塞密封

編號	DdL	H
TPM 1500-1125	38.128.5711.1	18.72	TPM 38.128.5711.1
TPM 1750-1125	44.4528.5719.05	31.75	TPM 44.4528.5719.05
TPM 2000-1375	50.834.9219.05	31.75	TPM 50.834.9219.05
TPM 2000-1625	50.841.2711.1	18.72	TPM 50.841.2711.1
TPM 2125-1500	53.9738.119.05	31.75	TPM 53.9738.119.05
TPM 2375-1750	60.3344.4519.05	31.75	TPM 60.3344.4519.05
TPM 2500-1875	63.0547.6219.05	31.75	TPM 63.0547.6219.05
TPM 2500-2000	63.0550.814.9	27.6	TPM 63.0550.814.9
TPM 2500-2125	63.553.9711.1	18.72	TPM 63.553.9711.1
TPM 2625-2000	66.6750.819.05	31.75	TPM 66.6750.819.05
TPM 3000-2250	76.257.1523.79	36.49	TPM 76.257.1523.79
TPM 3500-2750	88.969.8523.79	36.49	TPM 88.969.8523.79
TPM 4000-3250	101.682.5523.79	36.49	TPM 101.682.5523.79
TPM 5000-4000	127101.632.15	44.85	TPM 127101.632.15
TPM 6000-5000	152.412732.15	44.85	TPM 152.412732.15
TPM 7000-6000	117.8152.432.15	44.85	TPM 117.8152.432.15
